- Please note that this grounding rod is made of copper plated steel for optimum lightning dissipation. If you expect a pure copper grounding rod, please do not purchase this product.
- It’s used for grounding off-air antennas and satellite dishes for optimum protection and performance .
- Ship with Pre-installed Screw Wire Clamp. Suitable for grounding construction under different soil moisture, temperature, pH and resistivity changes.
- Rolled driving spike ,better than hammered tips.
- 100% after-sales guarantee. If you have any problems within 30 days of receiving the goods, you can enjoy the unconditional return refund service. Inquire us for better price if you have large quantity buy.
High-quality product technology
|
|
|
|---|---|---|
Rolled cone driving pointOur machine rolled cone driving point better than hammered flat point. when driving to ground, the stability is better and will not easily go to wrong direction. | Heavy-duty hex head screw boltsWe use heavy-duty hex head screw bolts for stronger ground wire fastening,better than thinner screw bolts. | Fully copper platedThe integrated fully copper plated clamp with copper plating on interior thread for better corrosion resistance. |
Off-Air Antenna Installations
Our ground rod are widely used for Off-Air Antenna Installations.
Satellite Dish Installations
Our ground rod are widely used for Satellite Dish Installations.
Electric Fencing
Our ground rod are widely used for Electric Fencing in farms and ranches.
Household diesel generator
Our ground rod are widely used for Household diesel generators.
4’ Copperbond Ground Rods with Preinstalled Convenient Clamp
Sandy or rocky soils are not as conductive as loamy soils, so systems installed on these types of soils may need to be an earth return type of grounding system. An earth return system is one in which alternate wires in the fence are utilized as ground wires. Charged wires on a system need to be connected back to the output connector on the energizer and earth ground non-charged wires need to be either connected back to the ground terminal on the charger, or connected to ground rods in the fence lines.
TO INSTALL A 2-ROD ENHANCED GROUND KIT AT SIMILAR EXPENDITURE OF ONE GROUND ROD
Importance to Install More Ground Rods
An energizer must be properly grounded to realize its full potential. The larger the output of a charger, the more grounding rods will be needed. A general rule is to install a minimum of 3 feet of ground rod per joule of output capacity.
A 15 joule fence charger will require a minimum of 45 feet of ground rod. These rods must be installed at least 10 feet apart from each other. The lower and wetter the ground they are installed in the better their performance will be. Most grounding rods are made from galvanized steel or copper and it is important that the type of wire used to connect the energizer to the ground rod be identical to the rod. Doing so will help to minimize the reduction of performance from electrolysis.
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|

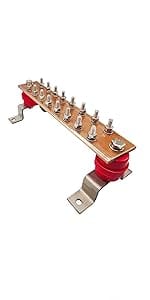

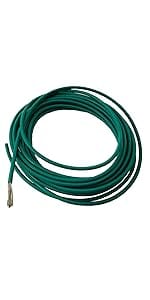

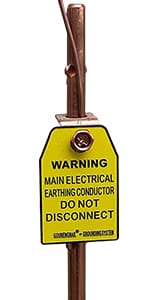

| Ground rod driver | 5/8”*8′ UL listed ground rod | UL listed ground wire | ground bar | ground rod driver cap | Warning tag for grounding connection | |
| model | Electric Hammer Bit | 5/8” ground rod | 10awg ground wire | 16TP ground busbar | Hammer cap | Warning tag |
